NSK Bearings: Source Factory Direct Sales
Sheet 01 · NSK precision bearings Spindles · Feed axes · Industrial equipment

Match your NSK precision bearing enquiry to the complete machine specification.

NSK Bearings: Source Factory Direct Sales supplies genuine NSK bearings to spindle rebuild shops, CNC retrofit teams, machine tool rebuilders and distributors worldwide. Send the full part number, the bearing position and the machine model — we confirm the exact execution before we quote.

Send Full Part Numbers → Send a Bearing Marking Photo →

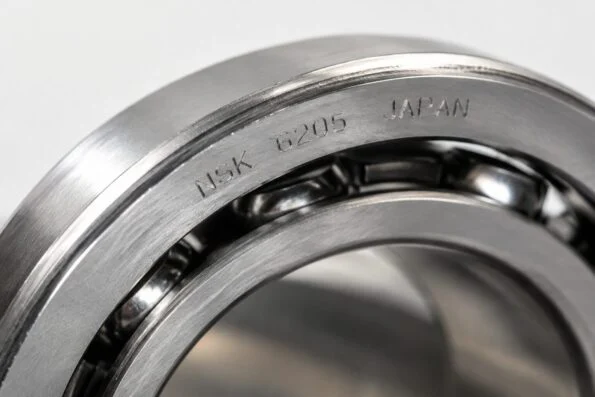

Macro close-up of engraved markings on the side face of an NSK precision bearing ring
■ NSK precision bearings
Full part number
confirmed before quote

§ 02 · Reading the full reference

The base number gives the size. The suffixes decide whether the bearing fits your machine.

A complete NSK reference carries the series and bore, the seal or shield type, the internal clearance and the precision class. Repair lists often keep only the first block — so two bearings with the same envelope can behave very differently in the same housing.

Stub stock code vs. complete reference
Detail Stub code Full number
Series & boreShownShown
Seal / shield / openLostSpecified
Internal clearanceLostSpecified
Precision classLostSpecified
Matched set & preloadLostSpecified
Fig. A · Generic reference structureNot to scale
▢▢▢▢
▢▢
▢▢
▢▢

  1. ① Series & bore

    Bearing type and boundary dimensions. The only part a stub code keeps.

  2. ② Seal / shield

    Open, shielded or contact-sealed. Changes lubrication and contamination behaviour.

  3. ③ Internal clearance

    Radial play chosen for fit and operating temperature. Wrong clearance, wrong running condition.

  4. ④ Precision class

    Tolerance grade that governs runout on spindles and positioning on feed axes.

Super-precision sets add cage, contact angle, arrangement and preload codes. Every reference is confirmed against your machine data and the bearing marking.

Send Your Full Part Numbers →

§ 03 · Bearing positions in the machine

List each bearing by its position in the machine, and quantities stop going wrong.

Drive end and non-drive end mixed on one line is a common source of wrong quantities. Open a marker to see which NSK bearing types usually sit at that position.

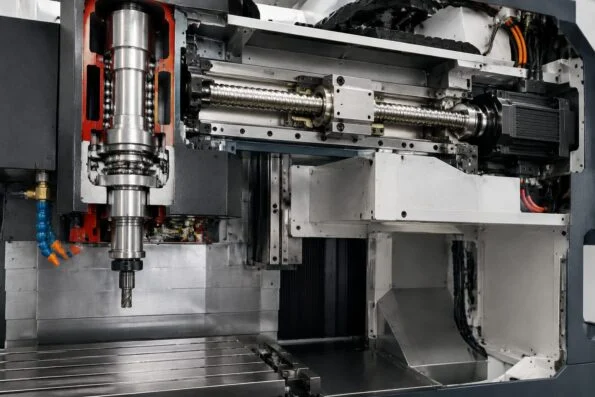

Cutaway view of a CNC machine tool showing spindle, motor and ball screw assembly
  1. 1 Spindle front end
    Super-precision angular contact ball bearings in matched sets; cylindrical roller bearings where high speed and high rigidity are required.
  2. 2 Spindle rear end
    Cylindrical roller or angular contact bearings, chosen to suit the front arrangement and thermal growth of the spindle.
  3. 3 Motor drive end
    Deep groove ball bearings in the specified open, shielded or sealed execution; cylindrical roller bearings on belt-loaded ends.
  4. 4 Motor non-drive end
    Usually a deep groove ball bearing that differs from the drive end — list it on its own line with its own quantity.
  5. 5 Ball screw support
    Ball screw support bearings for feed mechanisms and linear axes, supplied in the execution your axis specifies.

Browse NSK bearing types by category

View all NSK bearings →

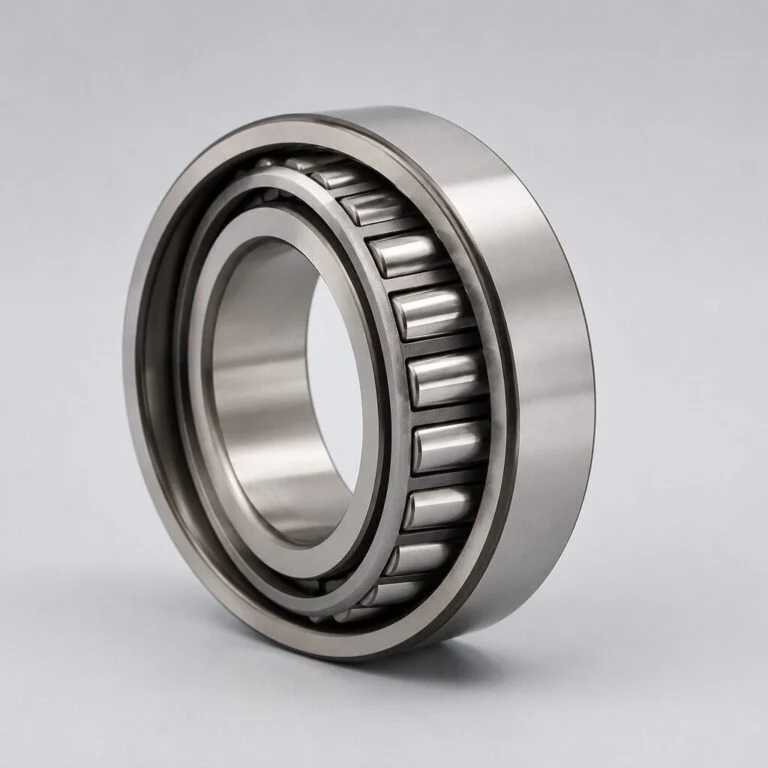

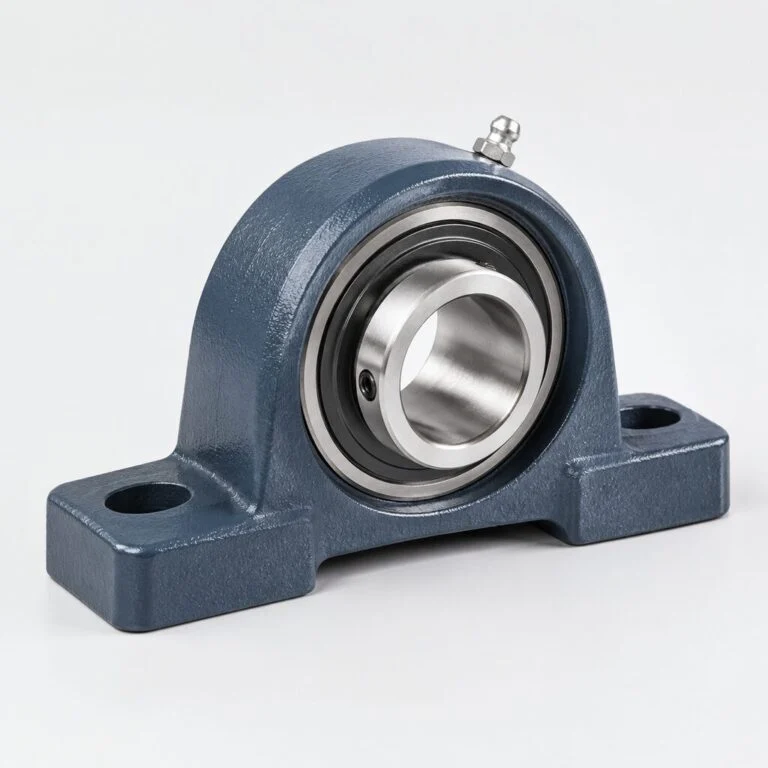

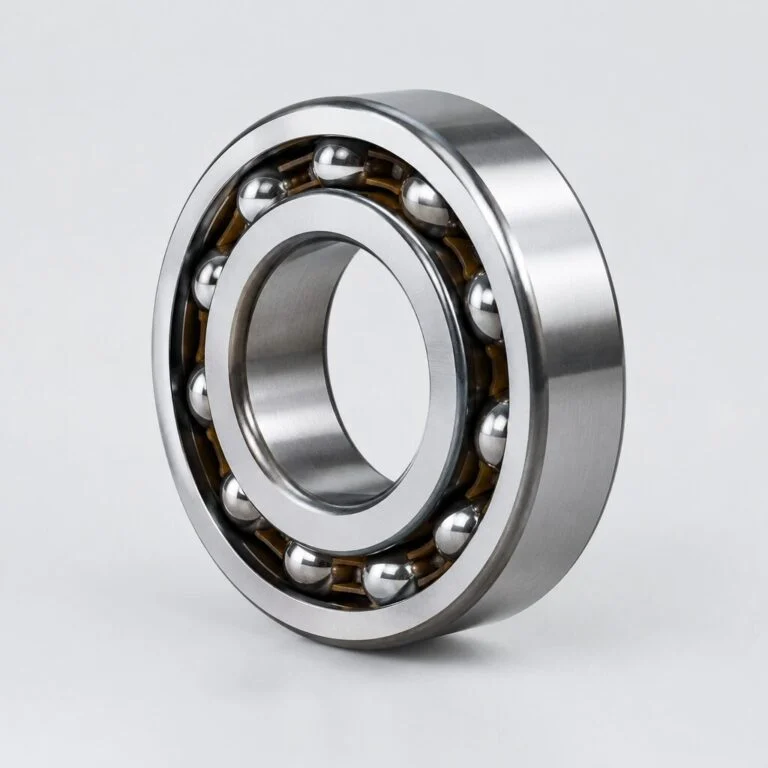

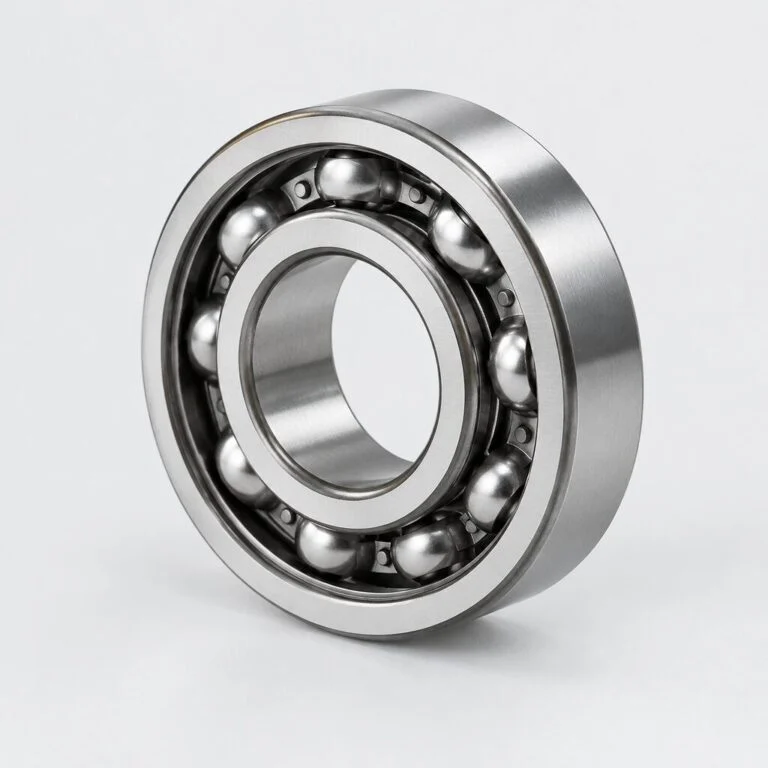

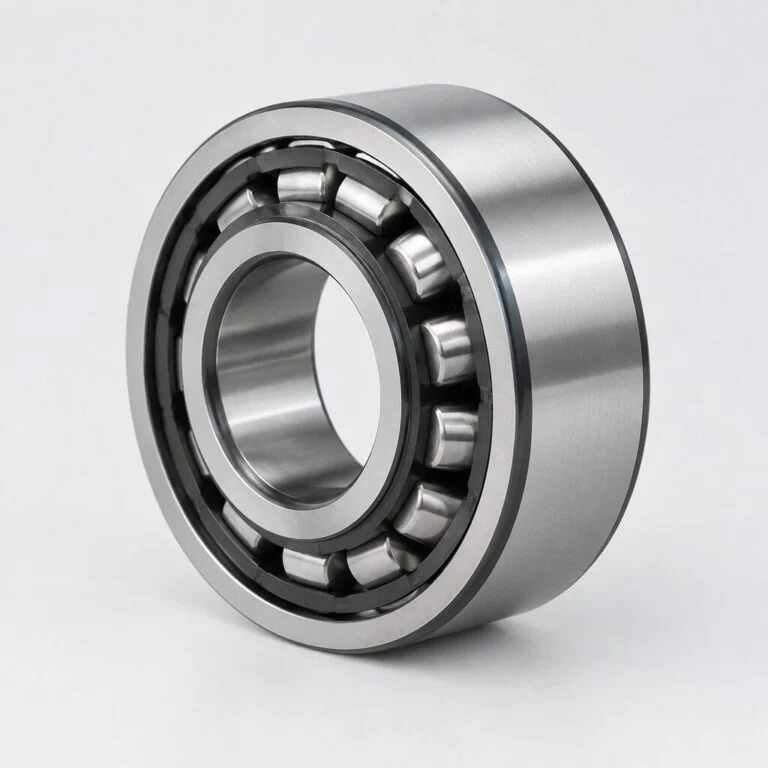

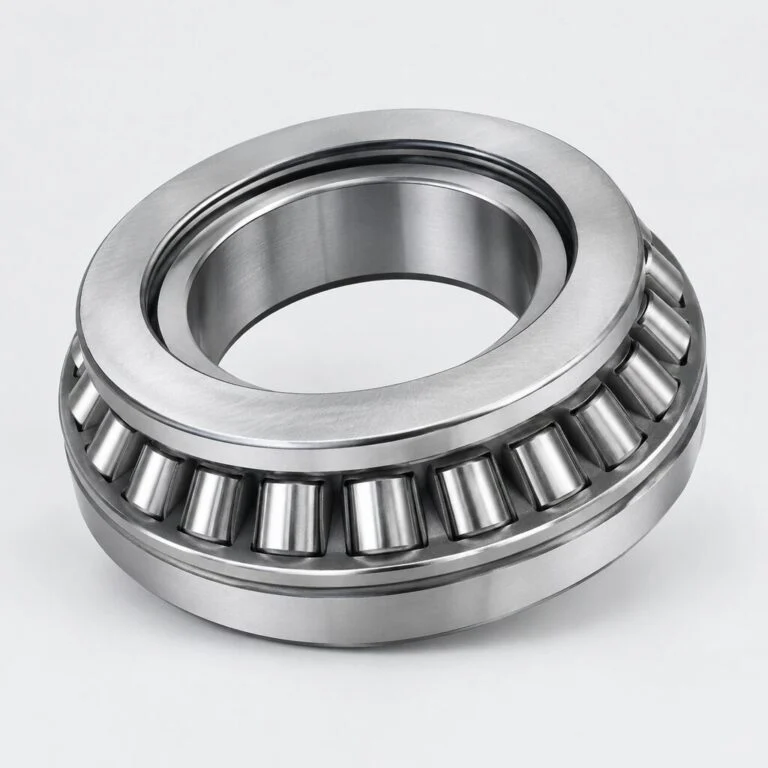

Deep Groove Ball Bearing 01 Deep Groove Ball Bearing 1,367 models → Angular Contact Ball Bearing 02 Angular Contact Ball Bearing 246 models → Taper Roller Bearing 03 Taper Roller Bearing 203 models → Cylindrical Roller Bearing 04 Cylindrical Roller Bearing 175 models → Thrust Self-aligning Roller Bearing 05 Thrust Self-aligning Roller Bearing 110 models → Pillow Block Bearing 06 Pillow Block Bearing 104 models →

§ 04 · Matched sets & preload

Spindle and feed-axis bearings are confirmed as a matched set with the right preload before dispatch.

Matched set of angular contact spindle bearings laid out on an inspection bench

Replacing one bearing of a set rarely restores runout

Precision spindles and feed axes depend on bearings that work as a group. We check the set before quoting so the replacement meets the specification the machine was built to.

  • Arrangement confirmed: back-to-back, face-to-face or tandem, as fitted
  • Preload class matched to the spindle design
  • Speed, preload and lubrication asked about before the NSK series is confirmed

We confirm the matching set and preload arrangement before dispatch, so the replacement follows the specification your spindle was built to.

Matched-set check · before dispatch
Technician fitting bearings into a machine tool spindle housing during a rebuild

§ 05 · Featured NSK bearings

Featured NSK bearings — quote one part or a full repair list.

View all NSK bearings →

Machine down and the part number has worn off the list?

Send a clear photo of the markings on the old bearing. We help confirm the correct NSK precision reference before you order.

WhatsApp the Marking Photo →

§ 07 · What each buyer checks

Each person on your side checks something different. Here is what we prepare for each.

Purchasing engineer comparing bearing boxes at a desk

A · Purchasing engineer

Complete part number, approved alternatives, documents

  • ✓Quote lists the full NSK reference, line by line
  • ✓Any alternative is marked separately; technical changes need your approval
  • ✓We state which product documents can actually be supplied
Maintenance supervisor inspecting a stopped machine tool on the shop floor

B · Maintenance supervisor

Bearing position, downtime date, complete assembly

  • ✓Each bearing confirmed against its position in the machine
  • ✓Stock status and estimated lead time against your required date
  • ✓We check the assembly is complete, including adapter sleeves or housings
Distributor buyer checking boxed bearings on warehouse shelves

C · Distributor buyer

Line quantities, commercial terms, repeat-order consistency

  • ✓Quantity, price and currency stated per line
  • ✓Quote validity and applicable shipping or tax terms in writing
  • ✓A direct contact for repeat references and long-term spares

§ 08 · From enquiry to delivery

Identification gaps are closed first; the written quote comes after.

An NSK order with NSK Bearings: Source Factory Direct Sales runs in six steps. Steps 02 and 03 are where wrong orders are prevented.

  1. 01

    Send the enquiry

    By WhatsApp or email: machine model, full suffix, position, sleeve or housing, quantities, destination and postcode, required date.

  2. 02

    Close the identification gaps

    Exact execution, complete assembly, and any separately marked alternative. Technical changes only with your approval.

  3. 03

    Written quote

    Reference, quantity, price and currency, stock, lead time, validity, shipping or tax terms, available documents.

  4. 04

    Review & order

    Confirm specification, quantities, delivery details, payment method and commercial terms.

  5. 05

    Shipping confirmed

    Transport method, dispatch timing and the shipping documents your order needs.

  6. 06

    Receiving check

    Check labels, quantity and appearance. Any mismatch: send the order number and photos.

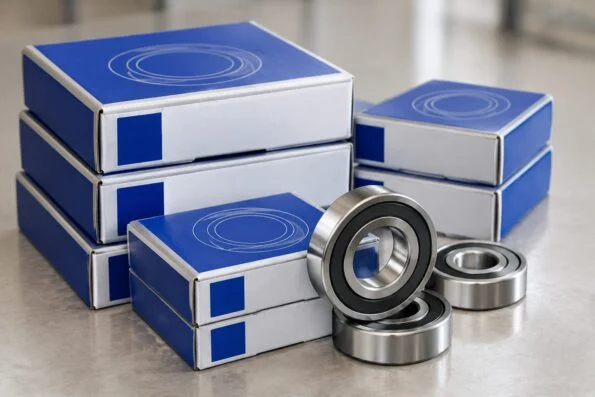

Stack of NSK bearings in original manufacturer boxes Inspector measuring a precision bearing with a gauge at goods receiving Boxed bearings packed in a carton ready for international dispatch
Start With Step 01 →

§ 10 · Notes for buyers

NSK part number, position and identification guides.

Enquiry sheet · NSK precision bearings

Technical changes or alternatives are only supplied with your approval.
